Original price was: 130,000.00৳ .125,000.00৳ Current price is: 125,000.00৳ .
| Applicable Optical Fiber Types | SM (.652/G.657). MM (G.651). DS (G653). NZDS (G.655). Bi.1. UB1. EDF-1 G657B3-1. |
| Applicable fiber core number | Single Core |
| Motor Number | 6 Motors, Auto Focus |
| Alignment | Core Alignment, Clading Alignment, Fine Alignment, Manual |
| Applicable Fiber diameter | Clading Dia. 125-150um. Coating Dia. 250-10000um |
| Splice Mode | Prestore 15 groups. User define 1000 groups |
| Splice Function | Splice by step (semi-automatic and manual). Automatic splice. |
| Average Fusion Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.02dB (CS), 0.04dB (DS), 0.4dB (NZ-DS). |
| Return Loss | Better than 60dB |
| Splice Loss Estimation | Yes |

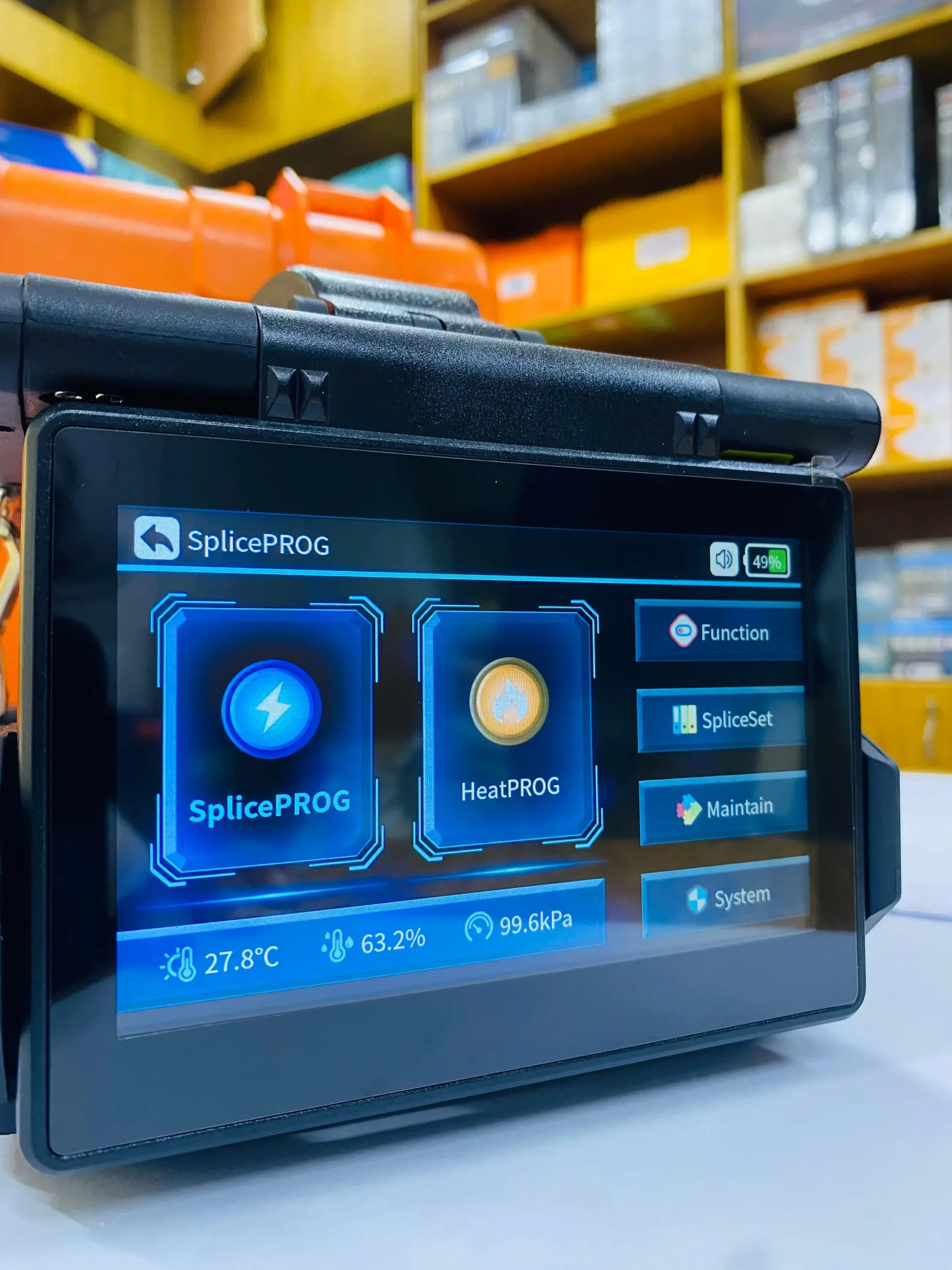

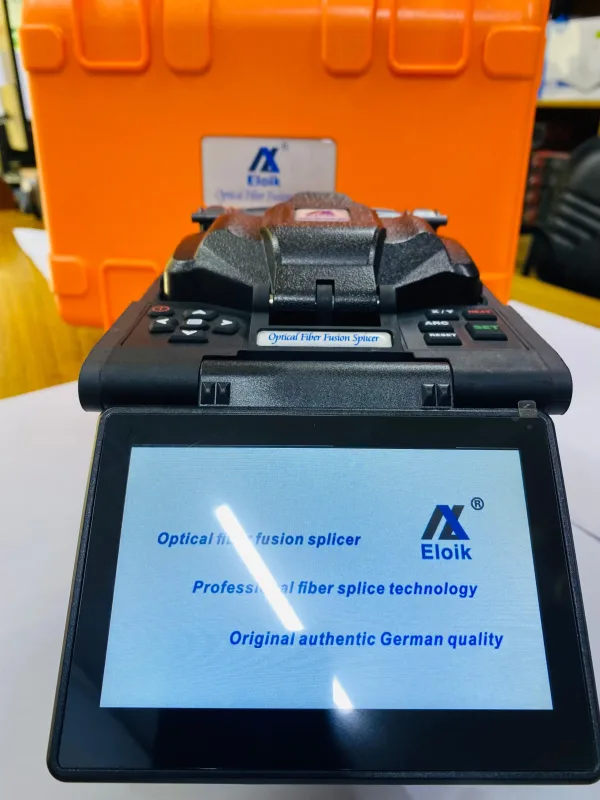

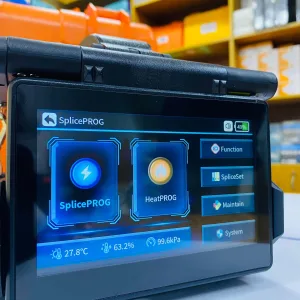

| Screen | 5″colour LCD, Support for Chinese, English, Spanish, Russian, French, Poruguese, etc. |
| Human Interface mode | Button / Touch operation. |
| Optical Fiber Magnification Times | X/Y 210 times, X or Y 320 times (Images can be double-clicked to magnify 1100 times) |
| OS System | Linux OS |
| Power Supply | 11.1V Lithium battery, 13.5V / 5A power adaptor |
| Battery | Typical use 280 cycles (Splice / Heating: Fast charge 3 hours, Recharge cycles: 500 times, 6800mAh Li-battery) |
| Power Saving Function | Automatic standby, Automatic shutdown, Manual. |
| Splice Results Storage | 100000 sets of splice reccord storage |
| Image Storage | 10,000 image Storage |
| Electrode Life | ≤6000 |
| Data interface | USB 2.0 support splice data export and software upgrades. |
| Operation Environment | Environment (0-5000m), relative humity, 0-95%, Temp -20 ~ 55 °C, Max wind speed 15m/s |
| Storage Environment | Relative humidty 0-95%, Temp -30 ~60 °C |
| Weight | 1.43kg (without battery), 1.85 kg (with battery). |
| size | 166D x 144W x 158H (mm) |
| Sleeve dimentiom | 2mm, 3mm 4mm, 6mm. |
| Sleeve Length | 25mm, 40mm, 45mm 60mm. User programable. |
| Heating Temp | 10 ~ 260 °C |
| Sleeve Auto-Heat | Automatic when heating cover closed. |
| Night Work Lighting | LED Double lights |
| Removable Battery | Yes |
| Tension Test | ＞2N |
| One-touch ARC Correction | Yes |
| Battery Safety Protection | Yes |
| GPS Location Function | Optional |
| Password Control Function | Optional |

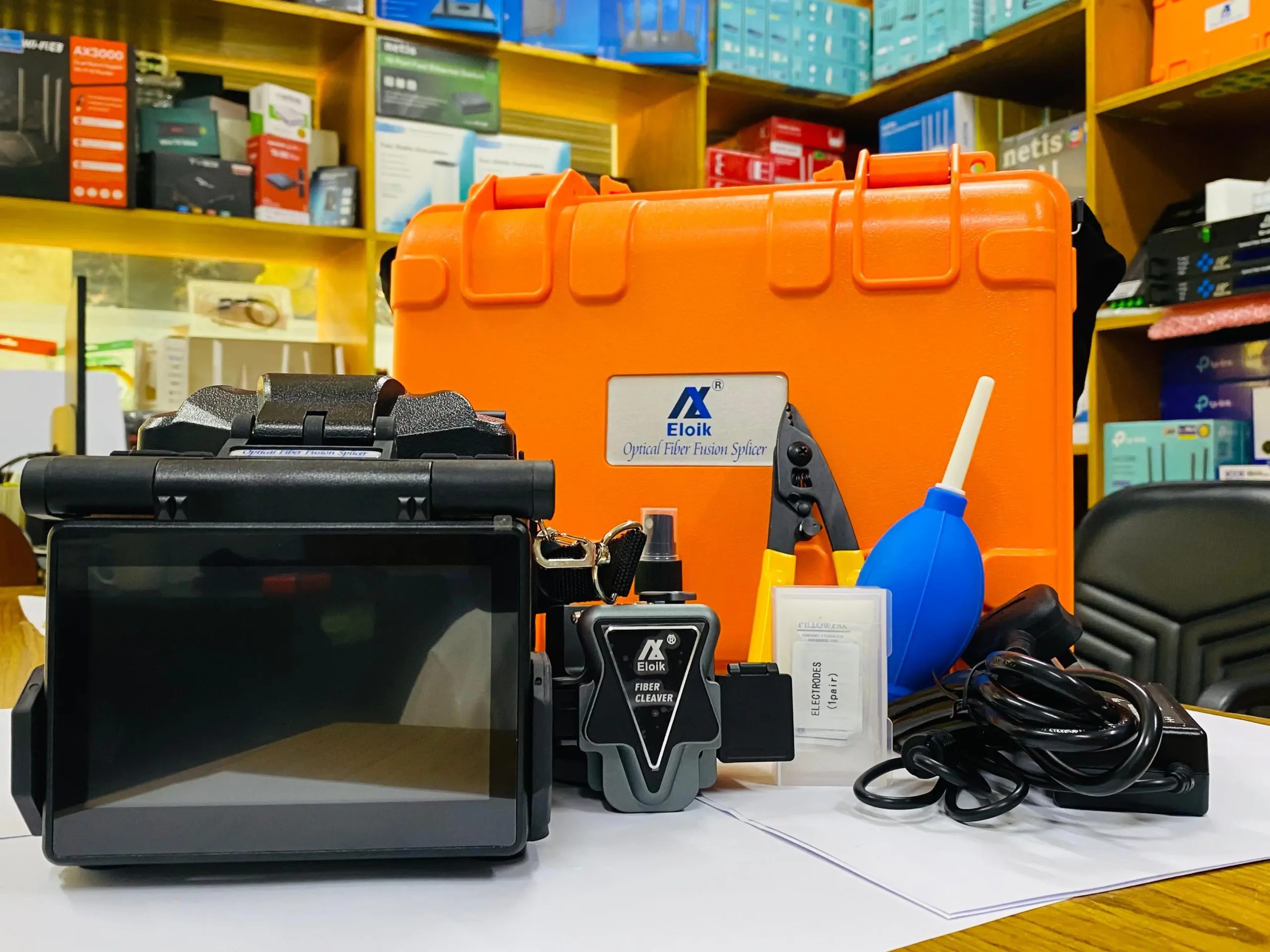

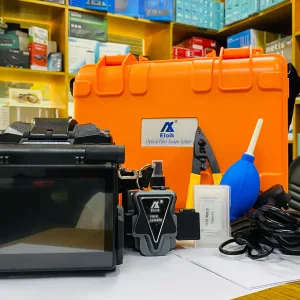

| STANDARD PACKAGE | Optical Fiber Fusion Splicer (with battery) | AC Power Cord | Carrying Case | Test Report | High-precision Fiber Cleaver | fiber stripper | Dust Blowing Ball | Electrode | Alcohol Bottle | Cooling Tray | AC Adapter | Car Charger (optional) | Multi-functional Fiber Holder | Drop Cable Stripper (Optical) | ||||||
For more details please visit : http://www.eloikchina.com/ProDetail.aspx?ProId=31

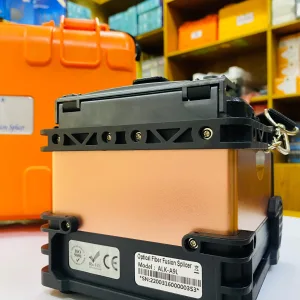

ALK-A9L
